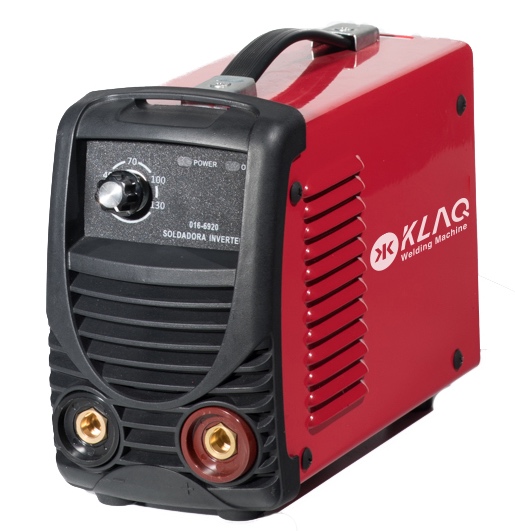

| MMA 03Mini IGBT | 120I | 140I | 160I | |
| Input voltage(V) ±10% | 160V-240V | 160V-240V | 160V-240V | |
| Frequency(Hz) | 50 | 50 | 50 | |
| Rated input current(A) | 16 | 20 | 23 | |
| Output current range(A) | 10-120A | 10-140A | 10-160A | |
| Duty cycle(%) 25 degree | 60% | 60% | 60% | |
| Rated input power ,KW | 3 | 3.6 | 4.2 | |
| Rated output voltage(V) | 24.8 | 25.6 | 26.4 | |
| Power factor(COSф) | 0.85 | 0.85 | 0.85 | |
| No-load voltage | 86 V | 86 V | 86 V | |
| Insulation class | F | F | F | |
| Protection class | IP21S | IP21S | IP21S | |
| Efficiency(%) | 85 | 85 | 85 | |
| Electrode(ф mm) | 1.6-3.2 | 1.6-4.0 | 1.6-4.0 | |
| Carton size (L x W x H), mm | 285 x 228 x 210 | 305 x 228 x 210 | 305 x 228 x 210 | |
