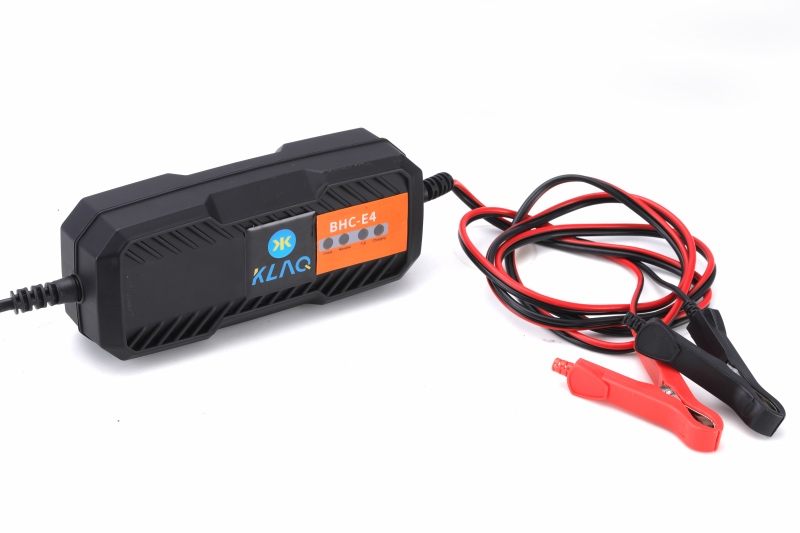

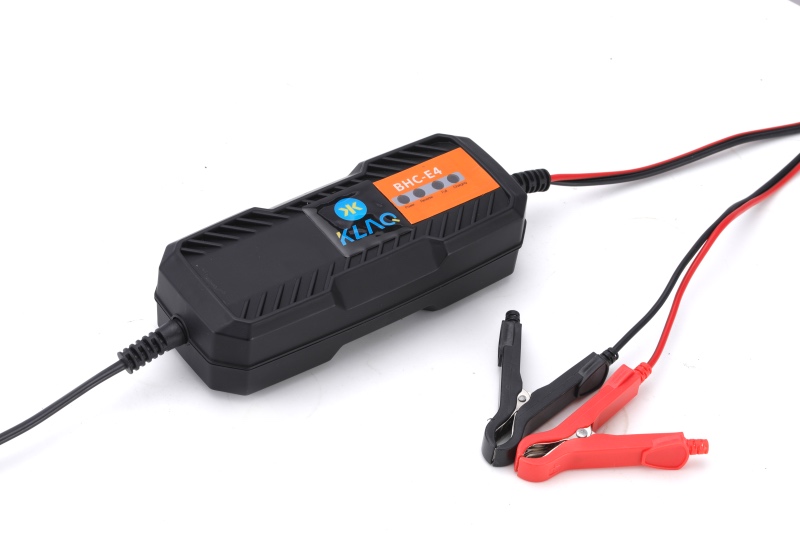

BHC-E2 BHC-E4 BHC-E7

Model

BHC-E2

BHC-E4

BHC-E7

Input Voltage AC

220-240V,50-60HZ

220-240V,50-60HZ

220-240V,50-60HZ

Power

Various,40W Max

Various,60W Max

Various,120W Max

Efficiency

85% Approx.

85% Approx.

85% Approx.

Out Put

6V DC:2A;12V DC:2A

6V DC:4A;12V DC:2A

12V DC:7A;24V DC:3.5A;

Back Current Drain

<5mA

<5mA

<5mA

Low-Voltage Detection

2V(12V),2V(6V)

2V(12V),2V(6V)

2V(12V),14V(24V)

Type of Batteries

6V&12V Lead-acid Batteries ，Wet,Gel,EFB,AGM,

6V&12V Lead-acid Batteries ，Wet,Gel,EFB,AGM,

12V&24V Lead-acid Batteries ，Wet,Gel,EFB,AGM,

Battery Capacity

Up To 60Ah(12V)Up To 60Ah(6V)Maintains All Battery Size

Up To 120Ah(12V)Up To 120Ah(6V)Maintains All Battery Size

Up To 230Ah(12V)Up To 115Ah(24V)Maintains All Battery Size

N.W

0.36KGS/PC

0.38KGS/PC

0.45KGS/PC
