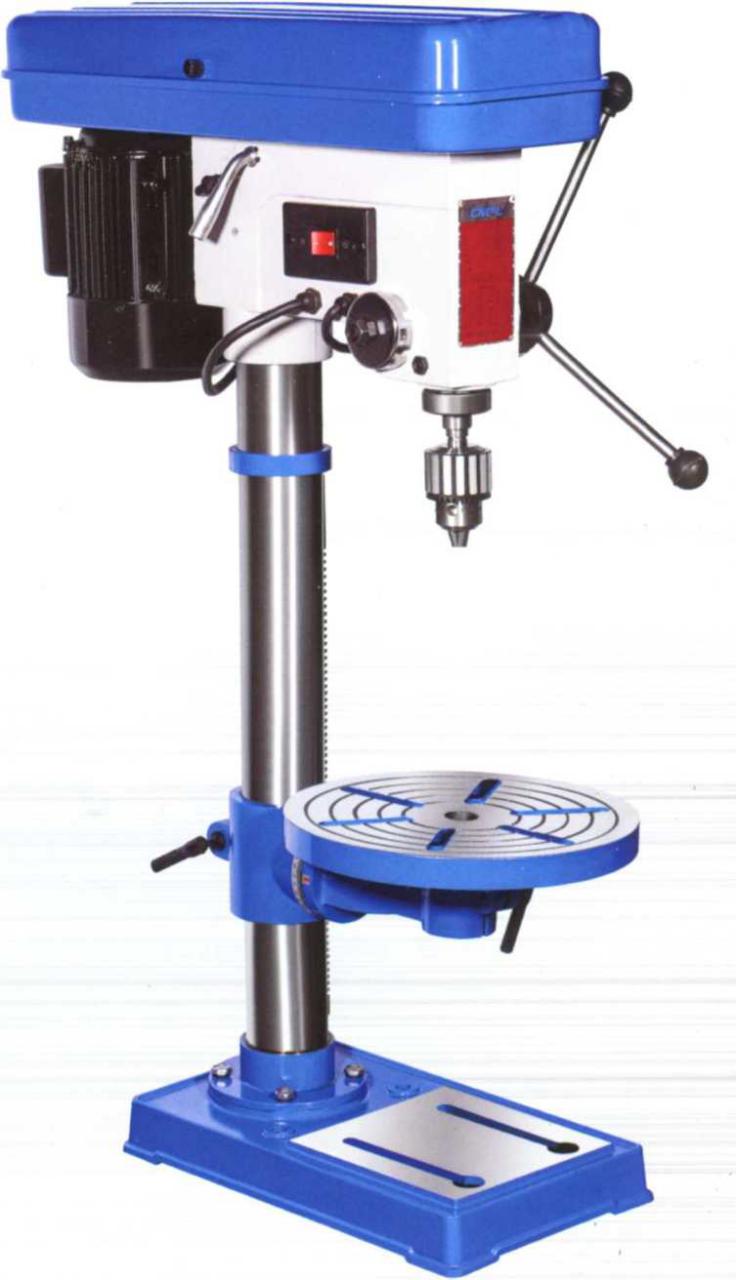

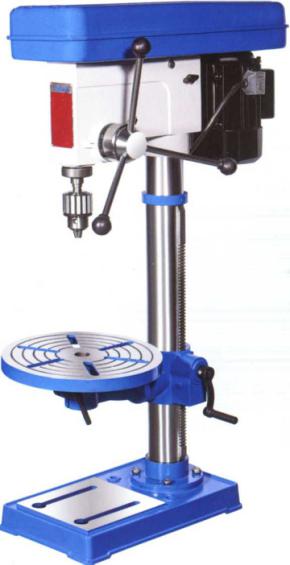

Drilling machine ST-16A

Model

ST-16A

Max.Tapping capacity

mm

16

Diameter of column

mm

71

Spindle travel

mm

80

Distance spindle axis to column generating line

mm

182

Max.Distance spindle nose to table

mm

375

Max.Distance spindle nose to base

mm

565

Spindle taper

MT2

Spindle speeds range

r/min

250-3200

Spindle speeds series

12

Dimension of table surface

mm

0284

Dimension of base

mm

440x255

Overall height

mm

985

Power of motor

w

250/370

G.W/N.W

kg

60/57

Packing dimension

cm

78x46x29
