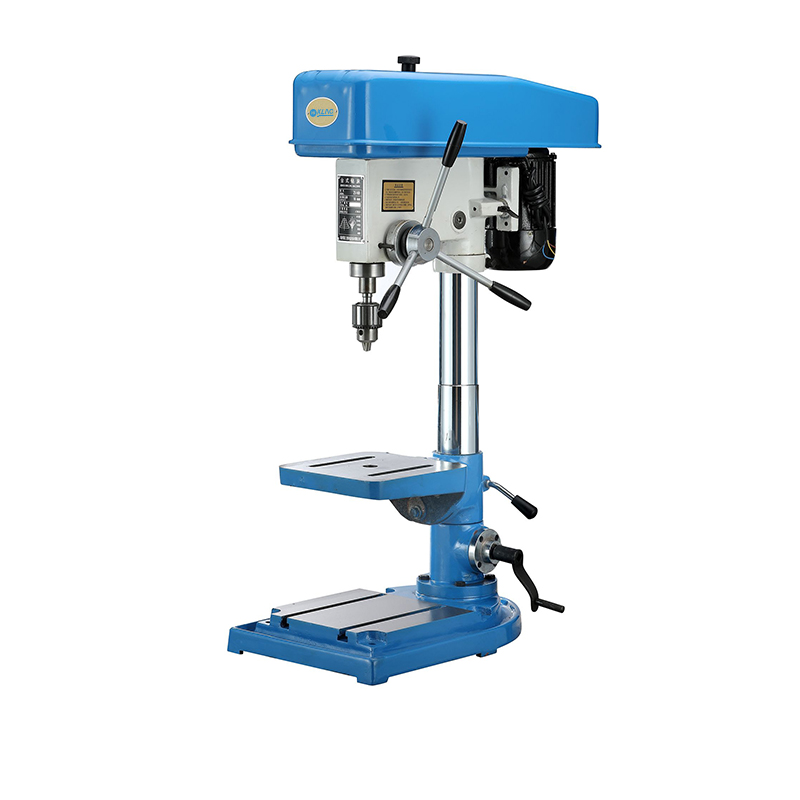

Industrial drilling machineZ512A-2 Z516A-2 Z512-2 Z516-2

Product Item : Z512A-2 Z516A-2 Z512-2 Z516-2
Product description： Characteristic: •The spindle box body, column and base are made of high quality casdogs, which are stable, firm and durable after aging treatment. ♦It has high precision and good ngxidy. and is wid
Inquiry

Model	Z512B	Z516B	Z4120B	Z4125B	Z4132B
Maximum diameter(mm)	12.7	16	20	25	32
Column diametef(mm)	70	70	85	85	85
Maximum stroke of spindle(mm)	100	100	110	125	110
Distance spindle axis to column sufface(mm)	193	193	240	240	240
Max Distance spindle nose to worktable(mm)	310		330	330	330
Max Distanc spindle nose to base(mm)	570	570	610	610	610
Spindle taper Spindle speeds range(r/min)	外锻B16 480-4100	B16TMT2 480*4100	B16/MT2 365-3150	B16/MT3 365-3150	B16/MT3 290-2150
Spindle speeds series(mm)	5	5	5	5	5

Dimension of worktable surfacefmm)	255*250	255*250	320 *280	320x280	320 x 280
Dimension of base(mm)	520 * 350	520x350	580 «370	580 x 370	580x370
Work bench slot/base slot(mm)	140/140	140/140	165/165	165/165	165/165
Overal height(mm)	1010	1010	1000	1000	1000
Motor (W)	550	550 1100		1100	1100
G.W/N.W(Kg)	94/81	94/81	137/117	138/118	138/118
Packing dimensions(cm)	75x40x95	75x40x95	79x45x107	79x45x107	79x45*107
