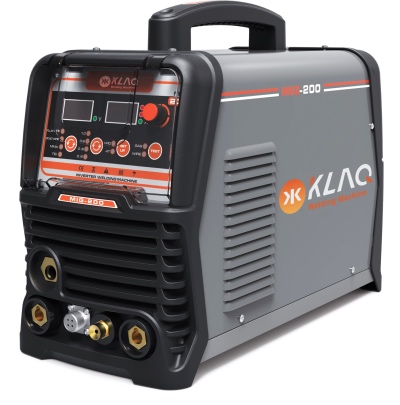

Dual Voltage MIG WELDING MACHINE

Product Item : MIG-180SNY/SNY
Product description：High-tech inverter Synergy MIG welding machine. Adopt MCB chip controlled system which delivers versatile welding process for MIG /MAG,MMA &LIFT TIG. Easy operation and excellent welding.
Inquiry

Power voltage(V) 110V/230V 50/60Hz
Rated input capacity(KVA) 6.5
No-load voltage(V) 54
Output current range MIG(A) 20-180
Output current range MMA(A) 20-160
Usable wire(mm) 0.6-1.0
Usable electrode(mm) 1.6-4.0
Duty cycle 60%
Efficiency 85%
Insulation degree F
Protection degree IP21S
Net weight 12.5kg

Dimension 435*220*320mm

-------------------------------------------------------

Power voltage(V) 110V/230V 50/60Hz
Rated input capacity(KVA) 7.5
No-load voltage(V) 54
Output current range MIG(A) 20-200
Output current range MMA(A) 20-180
Usable wire(mm) 0.6-1.0
Usable electrode(mm) 1.6-4.0
Duty cycle 60%
Efficiency 85%
Insulation degree F
Protection degree IP21S
Net weight 12.5kg
Dimension 435*220*320mm
