Electric Hydraulic Jack

Product Item : DSJA370/DSJA370+

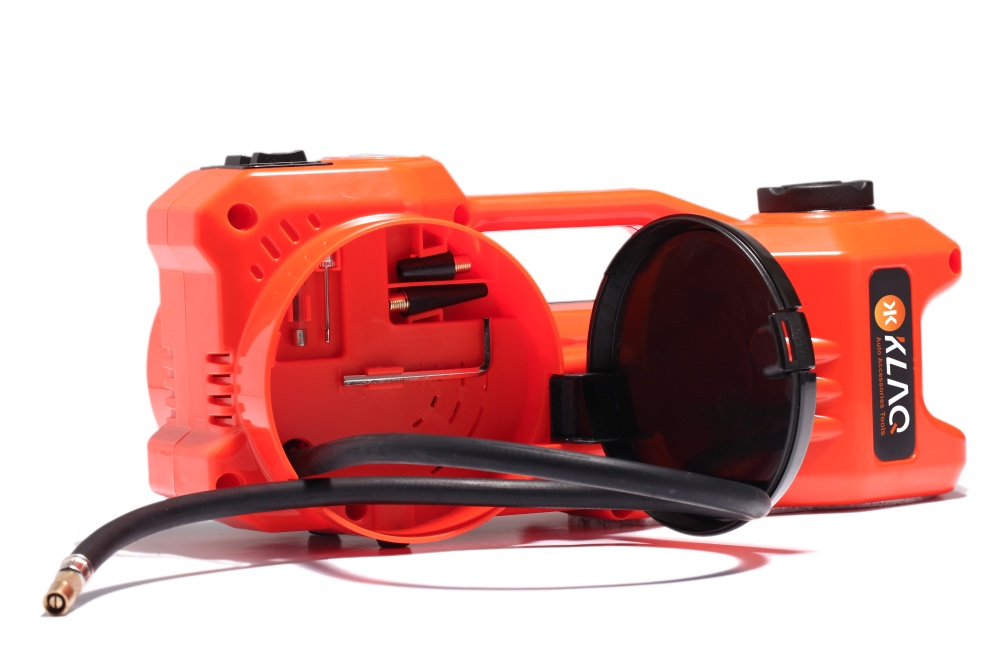

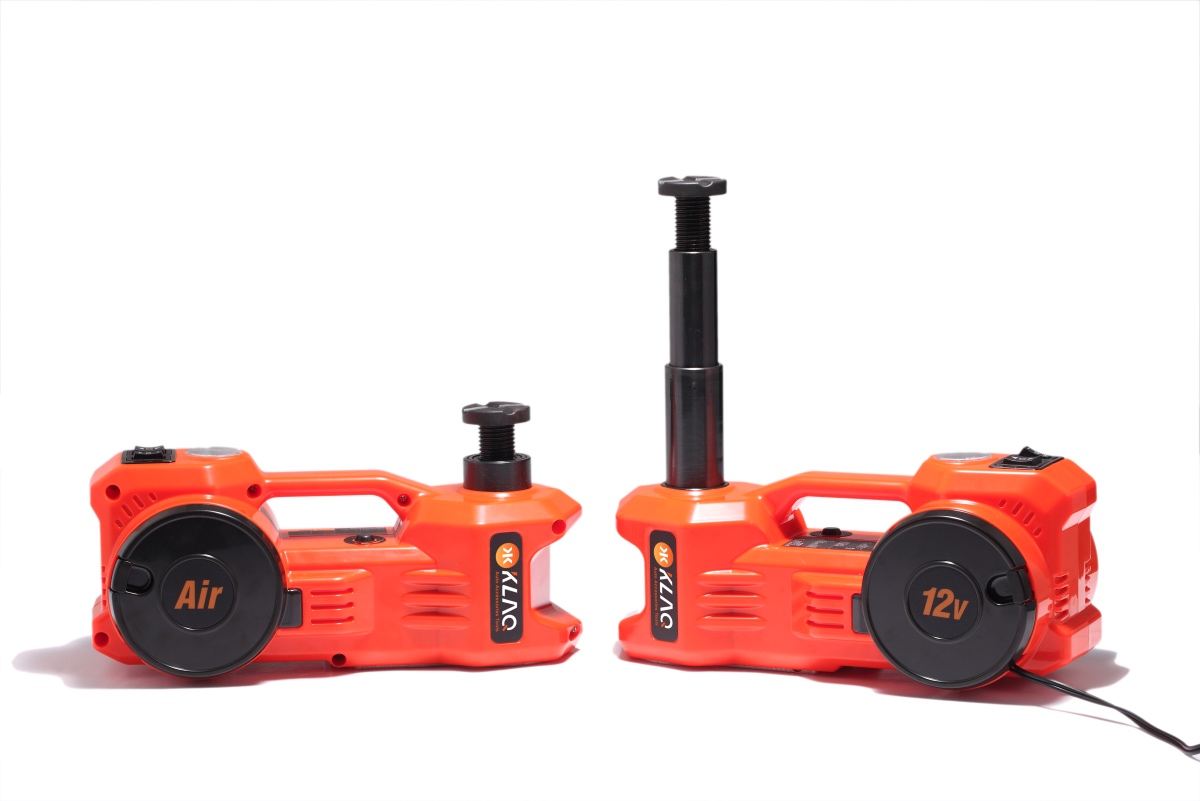

Multi-functional jack(2 in l:Lifting +Inflating)
Product description：♦1. Combine two functions of jack and Tyre Inflator Pump in one machine ♦2. Adopt self-developed small flow and large efficiency gear pump,reduce electrical power.reduce the work of car batteries and
Inquiry

Type	Common	Update
Model No.	DSJA370	DSJA370+
	Lifting Function Specification
Rated Power	150W	150W
Operating Voltage	DC 12V	DC 12V
Max.Current	13A	13A
Fuse	15A	15A
Max.Loading Car Weight	3T	3T
Lift Range	135-360mm	155-450mm

Inflating Function Specification

Max Pressure	150PSI	150PSI
Air Flow	35L/min	35L/min
Current	10A	10A
Air hose length	0.65m	0.65m

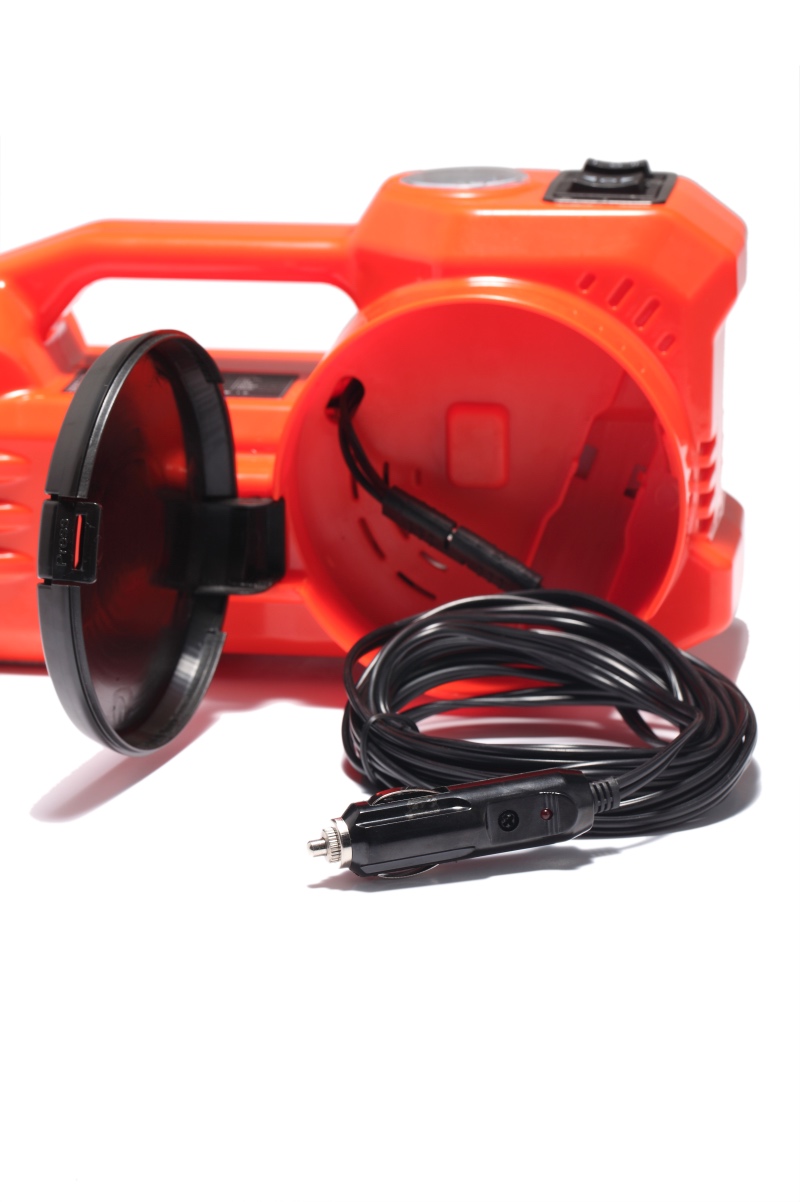

Power Cable	3.5m	3.5m
Package	Color box with foamCPIastic tool box)
N.W./G.W.	4.4/4.9kgs(4.4/6.2kgs)	4.7/5.2kgs(4.7/6.5kgs)
Master Carton Size	390370395mm(565395305mm)
Set/ctn	4pcs(3pcs)
