Water Proof Welder MMA-160/180 200

Product Item : Water Proof Welder MMA-160MN/180MN 200MN
INVERTER WATER PROOF WELDING MACHINE

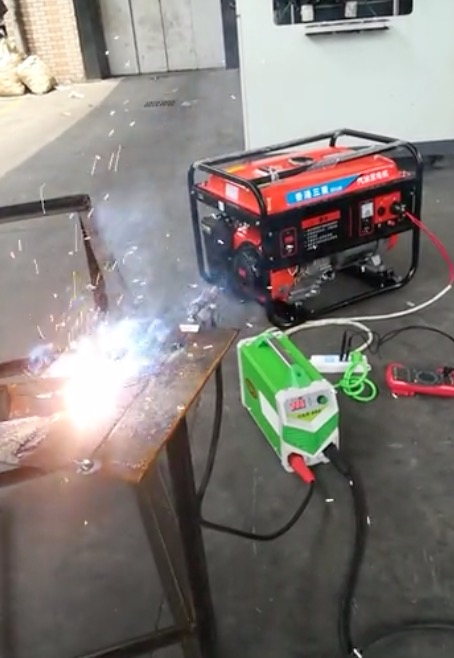

GENERATOR FRIENDLY
Product description：>National patent for appearance and structure of control circuit. >It's suitable formal kinds of electrodes; acid ,alkaline, cellulose electrode etc. >Wide voltage from110V-240V which also can conne
Inquiry

MMA -160MN

♦Adopt with advanced IGBT inverter technology
♦Whole Bridge Design

Wide Voltage from 130V-240V.

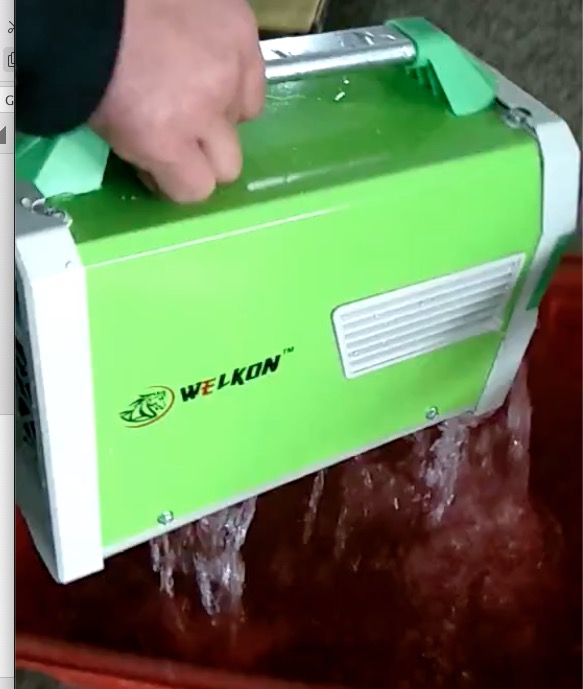

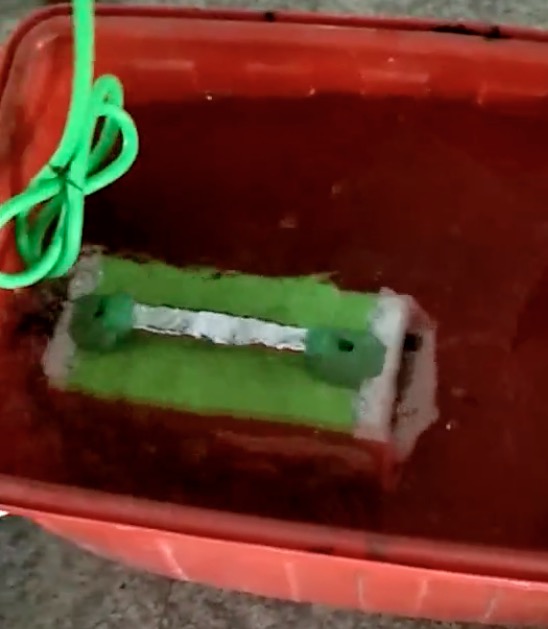

♦Water Proof and Generator friendly

Input Voltage & Frequency: AC130-240V /50HZ Rated Input Capacity(KVA) :
MMA:10.5 KVA
Current Range(A):
MMA:10-140A (Real current)
best For φ3.2mm
Duty cycle:60%
No-load Voltage:70V
G.W.:7.4KG

1,Electrode holder with 1.8M cable

2,Earth clamp with 1.2M Cable

3,Hammer/Brush

4,Helmet&glass
BIG CONNECTOR35/50MM

MMA - 180MN

Input Voltage & Frequency: AC130-240V /50HZ Rated Input Capacity(KVA) :
MMA:11.60 KVA
Current Range(A):
MMA:10-160A (Real current)
best For φ4.0mm electrode
Duty cycle:60%
No-load Voltage:70V
G.W.:7.5KG

1,Electrode holder with 1.8M cable

2,Earth clamp with 1.2M Cable

3,Hammer/Brush

4,Helmet&glass
BIG CONNECTOR35/50MM

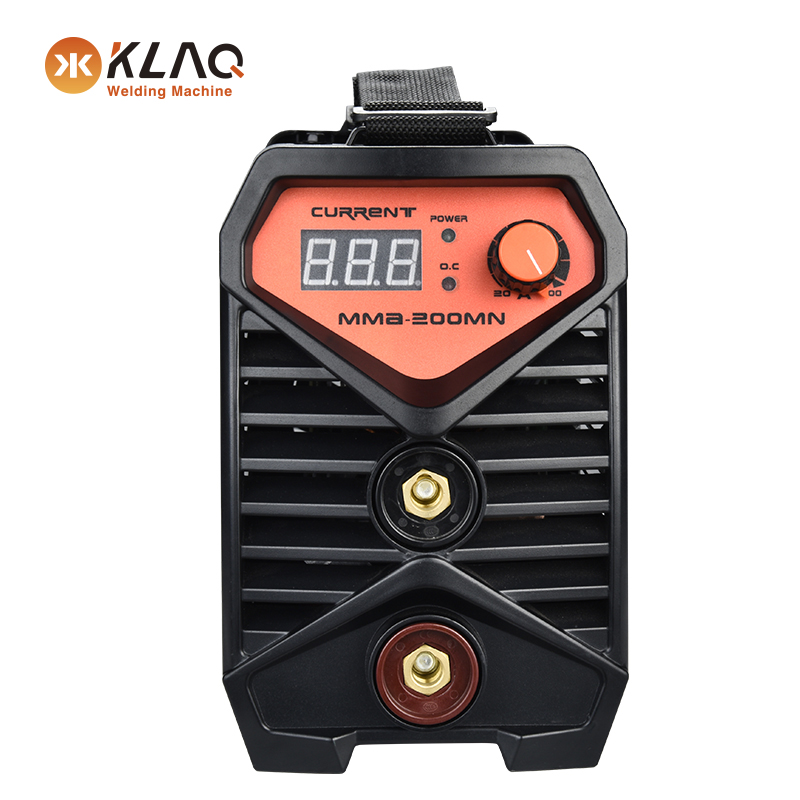

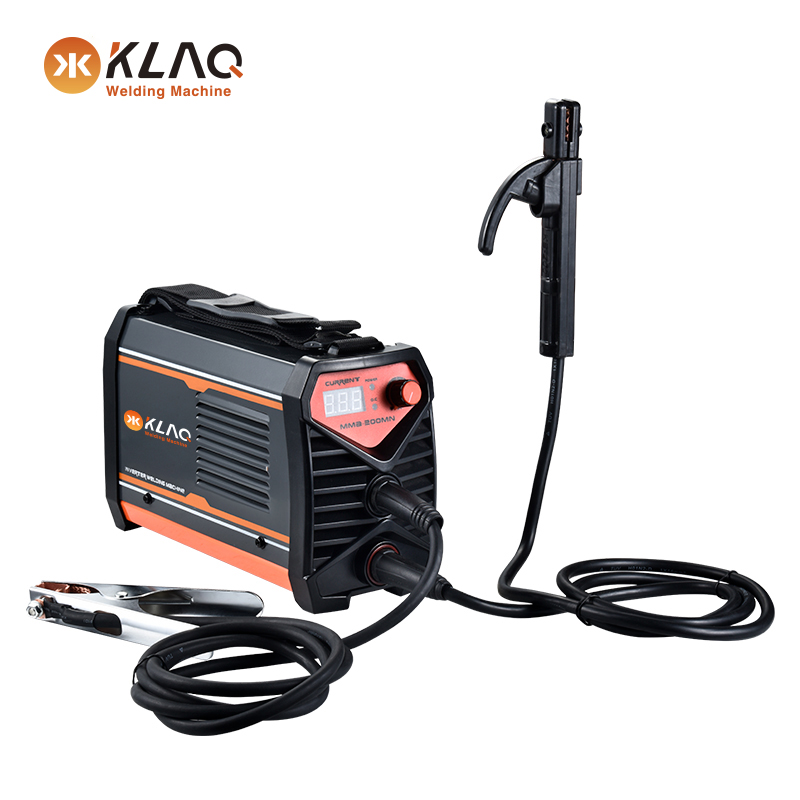

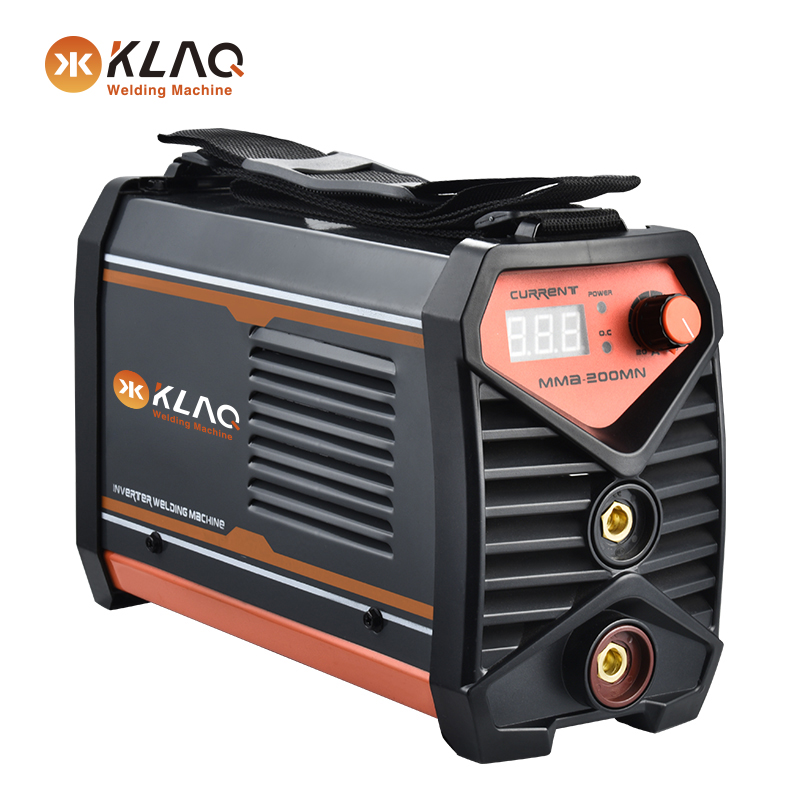

MMA - 200MN

Input Voltage & Frequency: AC130-240V /50HZ Rated Input Capacity(KVA) :
MMA:12.3KVA
Current Range(A):
MMA:10-180A (Real current)
best For φ4.0-5.0mm electrode
Duty cycle:60%
No-load Voltage:70V
G.W.:8.7KG

1,Electrode holder with 1.8M cable

2,Earth clamp with 1.2M Cable

3,Hammer/Brush

4,Helmet&glass
BIG CONNECTOR35/50MM
