| FEATURES : | ||||
| INPUT 110V OR 220V | ||||
| INVERTER IGBT TECHNOLOGY | ||||
| DIGITAL DISPLAY | ||||
| THERMAL PROTECTION , ANTI-STICK , HOT START , | ||||
| PORTABLE | ||||
| SMOOTH AND STABLE ARC ,EXCELLENT WELDING PERFORMANCE. | ||||

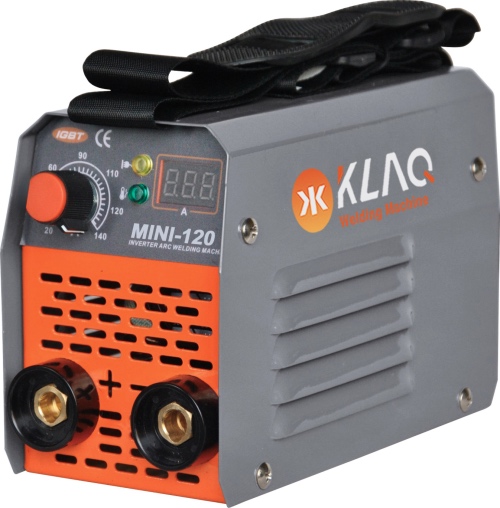

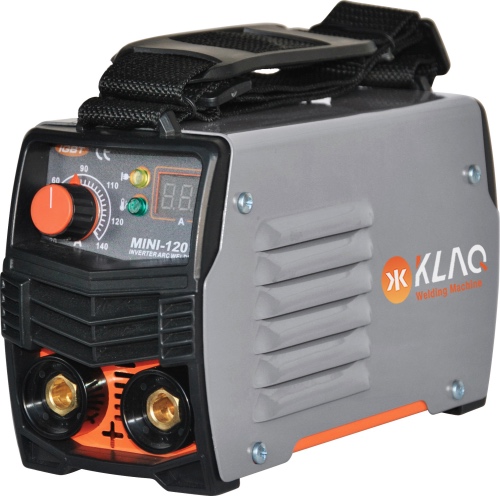

| ITEM/MODEL | MINI-120 | MINI-140 | |
| Power voltage(V) | 220±10% | 220±10% | |
| Rated input capacity(KVA) | 4.5 | 4.0 | |
| No-load voltage(V) | 65 | 65 | |
| Output current range(A) | 20-120 | 20-140 | |
| Usable electrode (mm) | 1.6-3.2 | 1.6-4.0 | |
| Duty cycle(%) | 35 | 35 | |
| Protection degree | IP21S | IP21S | |
| Insulation degree | F | F | |
| Efficiency | 85% | 85% | |
| Power factor | 0.93 | 0.93 | |
| Weight(Kg) | 2.5 | 2.5 | |
| Dimensions(mm) | 225X95X130 | 225X95X130 | |
