MMA68SY- 140I160I180I 200I220I

Product Item : MMA68SY- 140I160I180I 200I220I
MINI ORDER:50PCS
Single board; Arc force; Hot start; Anti-stick; Wide voltage 160V-240V; Overheating Protection

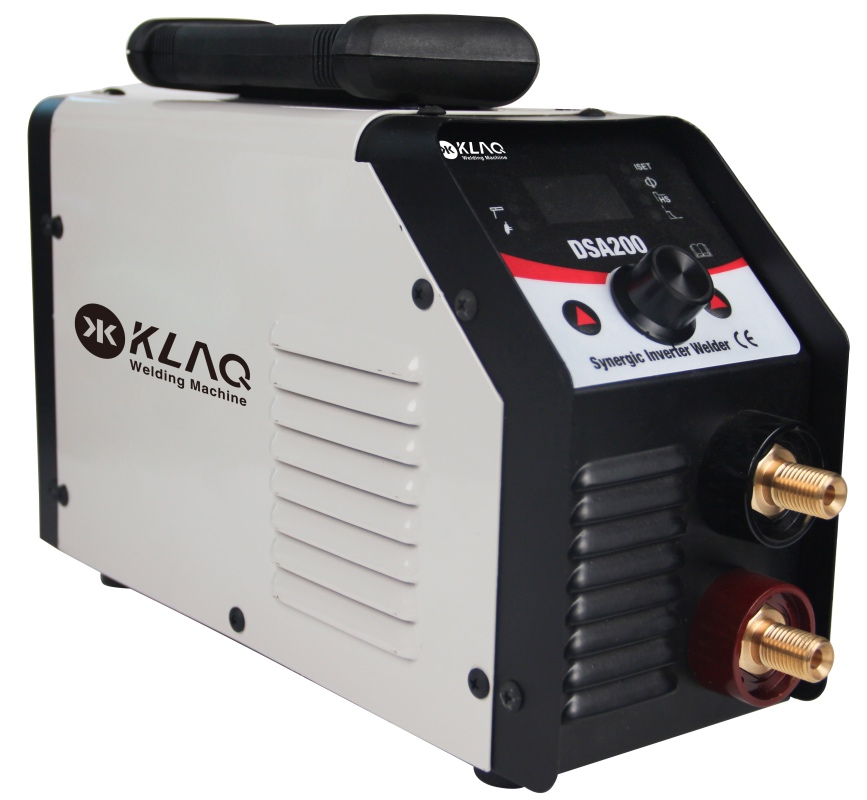

SYNERGY MMA WELDING MACHINE
Thailand style quick connector
Product description：The highly developed arc welding machine adopt advanced invertter technology that guarantees superior welding performance . The awesome welder makes revolutionary difference comparing with tradition
Inquiry

MMA-68SY IGBT	140I	160I	180I	200I	220I
Input voltage(V) ±10%	160V-240V	160V-240V	160V-240V	160V-240V	160V-240V
Frequency(Hz)	50	50	50	50	50
Rated input current(A)	27	32	35	40	45
Output current range(A)	10-140A	10-160A	10-180A	10-200A	10-220A
Duty cycle(%) 40 degree	40%	40%	40%	40%	40%
Duty cycle(%) 25 degree	80%	80%	80%	80%	80%
Rated input power ,KW	4.4	5.1	5.7	7.2	7.6
Rated output voltage(V)	25.8	26.6	27.2	28	28.6
Power factor(COSф)	0.85	0.85	0.85	0.85	0.85
No-load voltage	65 V	68 V	75 V	75 V	75 V
Insulation class	F	F	F	F	F
Protection class	IP21S	IP21S	IP21S	IP21S	IP21S
Efficiency(%)	85	85	85	85	85
Electrode(ф mm)	1.6-4.0	1.6-4.0	1.6-4.0	1.6-5.0	1.6-5.0
Carton size (L x W x H), mm	320 x 175 x 300	320 x 175 x 300	320 x 175 x 300	320 x 175 x 300	340 x 175 x 300
Accessories	1.8M cable with electrode hoder,1pcs 1.2M cable with earth clamp.mask,steel brush,manual.
