| FEATURES : | |
| INPUT 110V ,220V OR 110/220V | |
| PORTABLE | |
| THERMAL PROTECTION | |
| AC OUTPUT | |

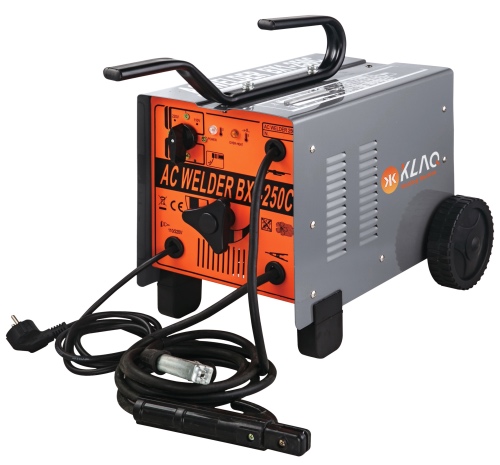

| ITEM/MODEL | BX1-130C | BX1-160C | BX1-200C | BX1-250C | |||
| Power voltage(V) | 220±10% | 220±10% | 220±10% | 220±10% | |||
| Rated input capacity(KVA) | 6.4 | 7.4 | 11.2 | 14.0 | |||
| No-load voltage(V) | 48 | 48 | 48 | 48 | |||
| Output current range(A) | 50-130 | 55-160 | 60-200 | 80-250 | |||
| Usable electrode (mm) | 1.6-3.2 | 1.6-4.0 | 1.6-5.0 | 1.6-5.0 | |||
| Duty cycle(%) | 10 | 10 | 10 | 10 | |||
| Protection degree | IP21S | IP21S | IP21S | IP21S | |||
| Insulation degree | H | H | H | H | |||
| Efficiency | 85% | 85% | 85% | 85% | |||
| Power factor | 0.93 | 0.93 | 0.93 | 0.93 | |||
| Weight(Kg) | 15 | 16 | 18.5 | 21.5 | |||
| Dimensions(mm) | 400X245X310 | ||||||
