| FEATURES : | ||||
| INPUT 110V OR 220V | ||||
| PORTABLE | ||||
| THERMAL PROTECTION | ||||
| AC OUTPUT | ||||

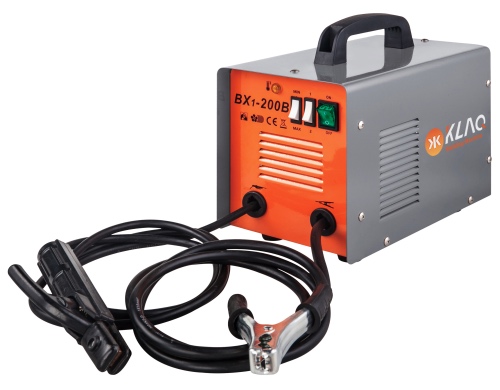

| ITEM/MODEL | BX1-130B | BX1-160B | BX1--200B | |
| Power voltage(V) | 220±10% | 220±10% | 220±10% | |
| Rated input capacity(KVA) | 6.4 | 7.4 | 11.2 | |
| No-load voltage(V) | 48 | 48 | 48 | |
| Output current range(A) | 50-130 | 55-160 | 60-200 | |
| Usable electrode (mm) | 1.6-3.2 | 1.6-4.0 | 1.6-5.0 | |
| Duty cycle(%) | 10 | 10 | 10 | |
| Protection degree | IP21S | IP21S | IP21S | |
| Insulation degree | H | H | H | |
| Efficiency | 85% | 85% | 85% | |
| Power factor | 0.93 | 0.93 | 0.93 | |
| Weight(Kg) | 14 | 15 | 17 | |
| Dimensions(mm) | 345X170X270 | |||
