START-200 300 400 500 600

Product Item : START-200 300 400 500 600

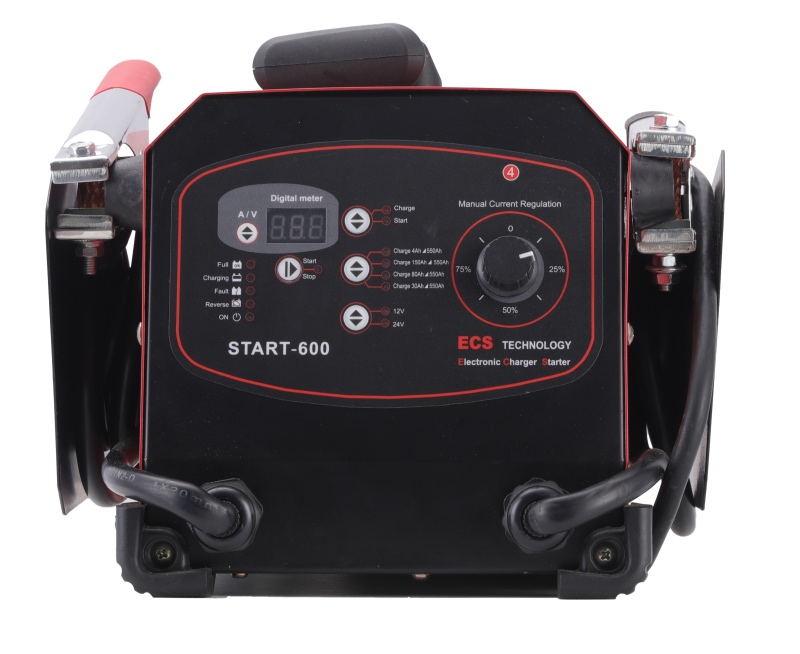

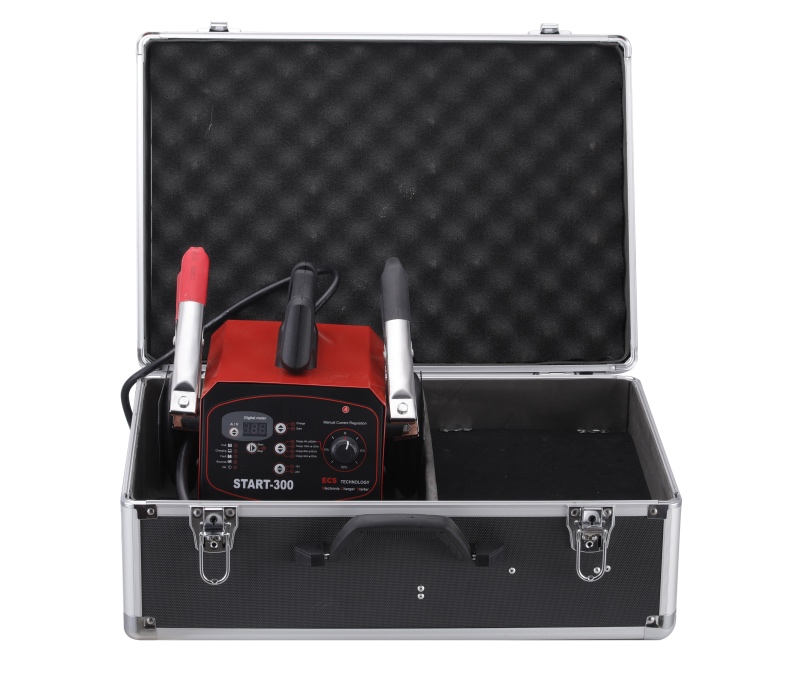

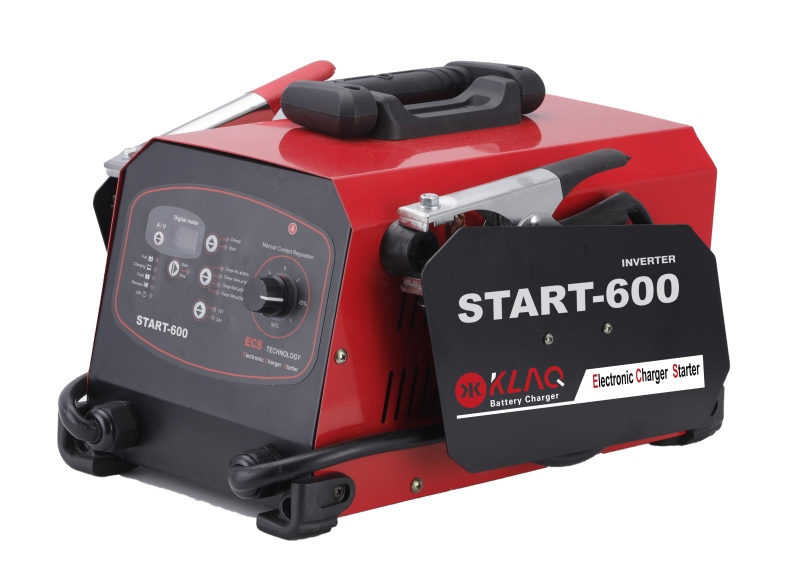

INVERTER BATTERY CHARGER WITH START FUNCTION
Product description：1. Inverter type battery charger with Micro processor Auto Control. 2.Compact,light and portable,Small size with big power ! 3.Short-circuit Protection: Charger O/P cut-off automatically when short
Inquiry

Model	START-150	START-200	START-300	START-400	START-600
INPUT VOLTAGE(V)	220V	220V	220V	220V	220V
Frequency	50/60HZ	50/60HZ	50/60HZ	50/60HZ	50/60HZ
Charging Voltage	12/24V	12/24V	12/24V	12/24V	12/24V
Power consumption inCHARGING / STARTmode(KW)	0.6/2.4 @12V 1.2/4.4 @24V	1/3.2 @12V 2/5.9 @24V	1.3/4.8 @ 12V 2.4/8.8 @24V	1.6/6.4 @12V 2.9/12 @24V	1.9/8 @12V 3.5/15 @24V
Rated charging current, A	40	60	80	100	120
Start Current A	150	200	300	400	600
Capacity of rechargeable battery, Max. Ah	400	600	800	1000	1200
Capacity of rechargeable battery, Min. Ah	40	60	80	100	120
Dimension (CM)	272418	272418	272418	393824	393824
