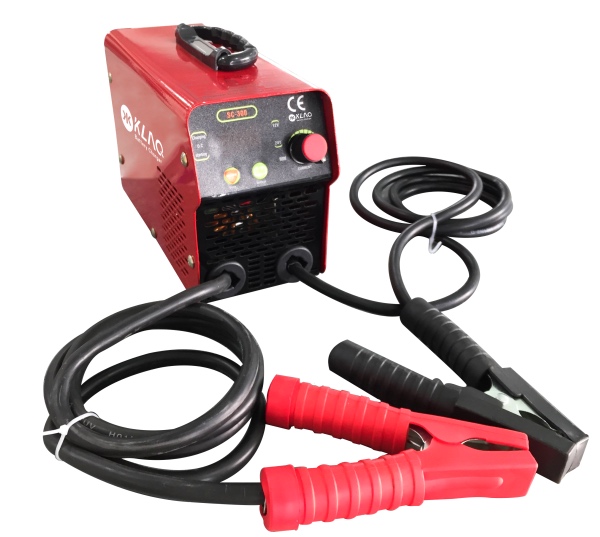

START- 300F/ 600F

Product Item : START- 300F/ 600F
INVERTER BATTERY CHARGER WITH START FUNCTION
Product description：1. Inverter type battery charger with Micro processor Auto Control. 2.Compact,light and portable,Small size with big power ! 3.Short-circuit Protection: Charger O/P cut-off automatically when short
Inquiry

Model	START-300	START-600
INPUT VOLTAGE(V)	220V	220V
Frequency	50/60HZ	50/60HZ
Charging Voltage	12/24V	12/24V
Power consumption inCHARGING / STARTmode(KW)	1.3/4.8 @ 12V 2.4/8.8 @24V	1.9/8 @12V 3.5/15 @24V
Rated charging current, A	80	120
Start Current A	300	600
Capacity of rechargeable battery, Max. Ah	800	1200
Capacity of rechargeable battery, Min. Ah	80	120
Dimension (CM)	272418	393824
