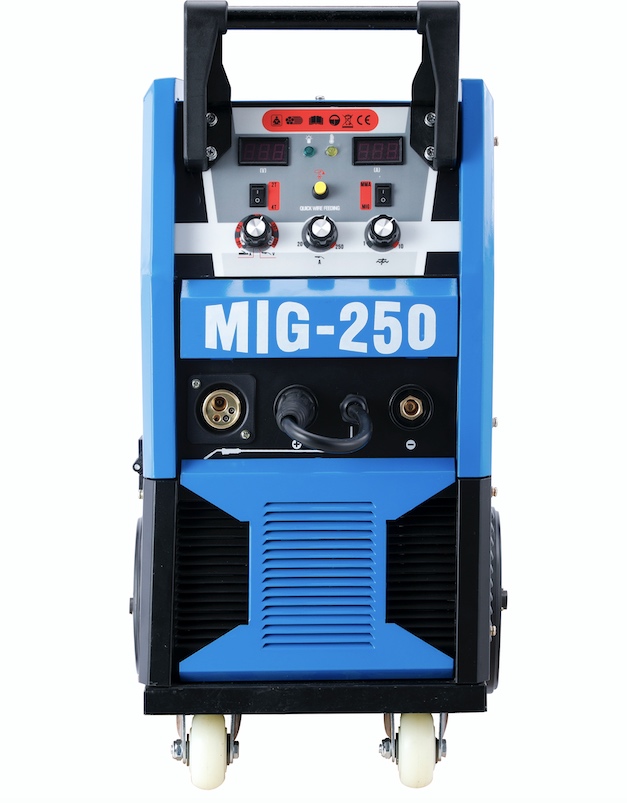

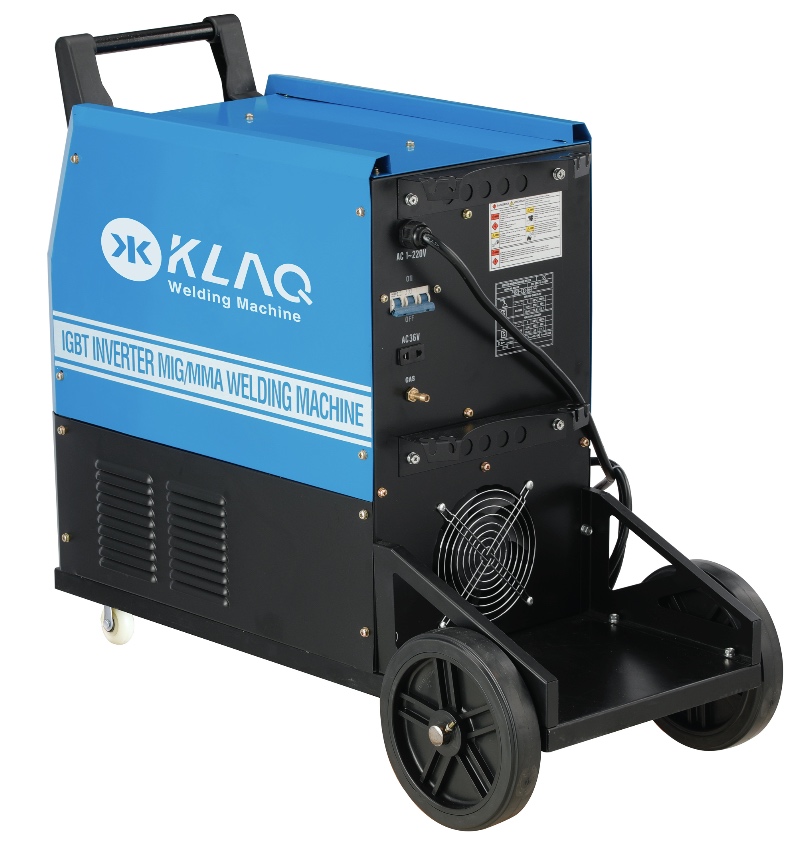

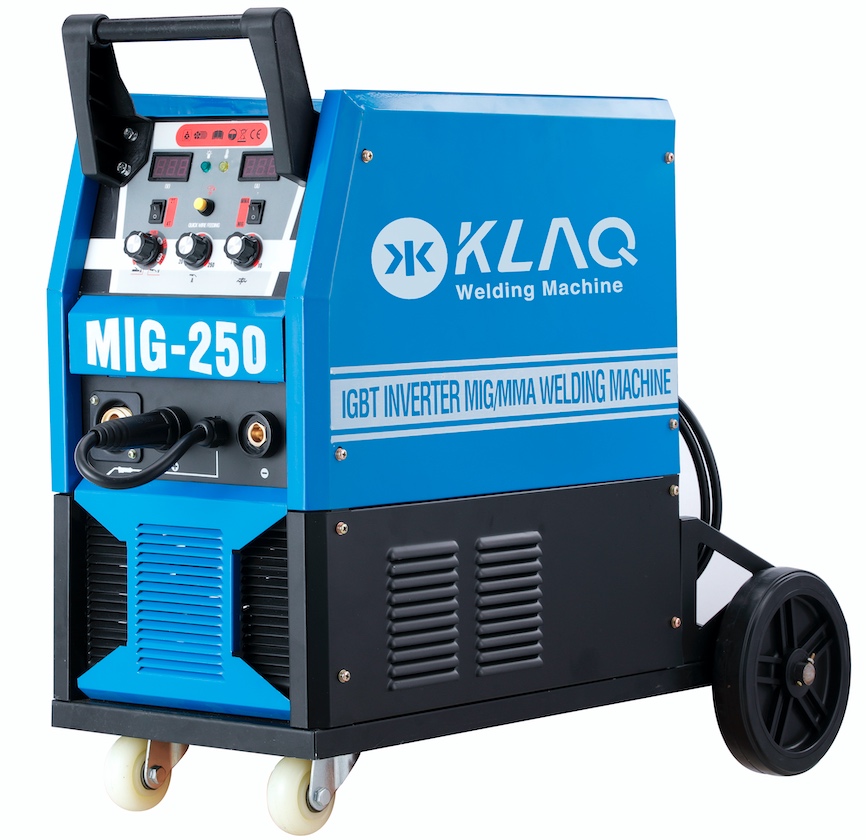

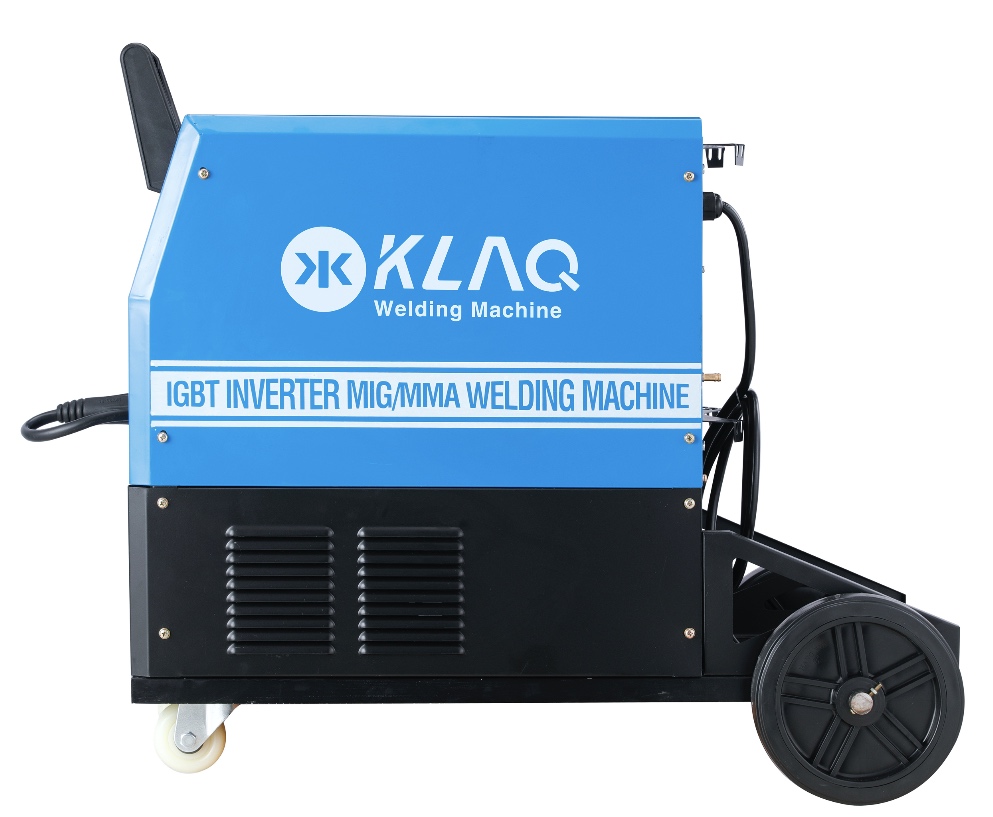

| Model | Unit | MIG-250PRO | MIG-350PRO |
| Input Power Voltage | V | Single phase 220±10% | Three phase 380±10% |
| Output current range | A | 50-200 | 50-250 |
| Output voltage (VDC) | V | 15--60 | 15--60 |
| Duty cycle imax (40℃) | 200A/60% | 250A/60% | |
| Power Factor | cosΦ | 0.72 | 0.72 |
| Efficiency | % | 85 | 85 |
| Insulation class | F | F | |
| Protechtion class | IP21 | IP21 | |
| Dimension | mm | 902×350×600 | 902×350×600 |
| Weight | Kg | 42 | 42 |
| Diameter of the wire | mm | 0.6-1.0 | 0.6-1.2 |
