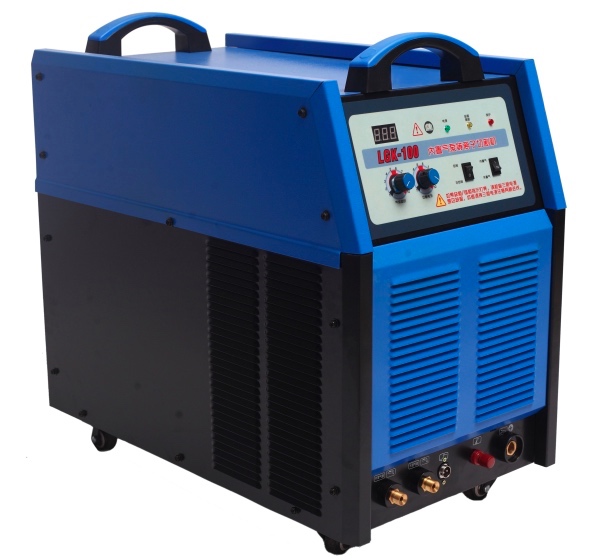

Plasma cutting 100A 120A

Product Item : LGK-100 120
AIR COMPRESSOR INSIDE
Product description：Advanced inverter IGBT modularization technology Air compressor inside design. Cutting thickness：40mm(Max)
Inquiry


ITEM	UNIT	LGK-100
Input Power Voltage	V	380V (3Ph)
Frequency	Hz	50 / 60
Rated Input Capacity	KVA	15

Real Output Current CUT	A	20-105A
No-Load Voltage	V	308
Rated Duty Cycle	%	60%
Power Factor	COS	0.93
Temperature protection		80 degree
Protective Grade of Housing		H
Cutting thickness （max)	mm	40mm
Clean Cutting thickness	mm	20mm
Cutting mode		2T/4T
Air Pressure		2.5-5.5
Power Supply Cable		2.5mm,3meters

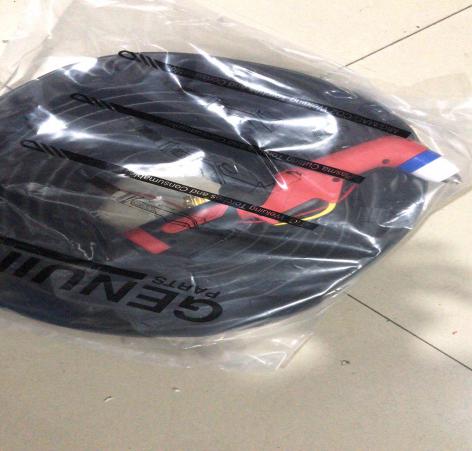

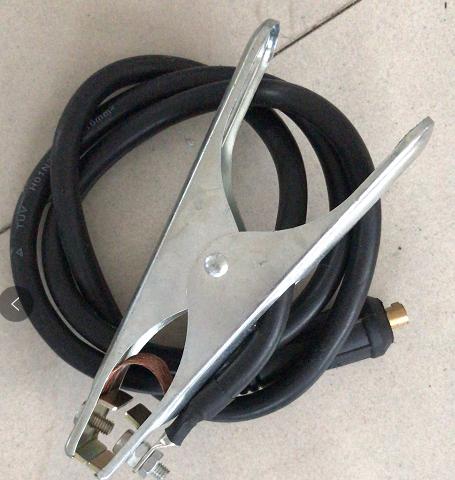

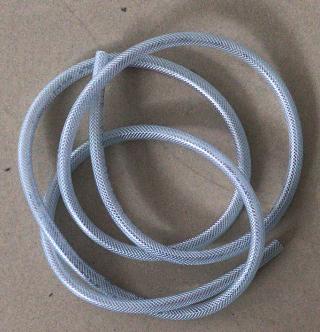

Accessories(配件）		P80 cutting torch 4 meters，25mm welding clamp 2 meters (copper and aluminium),25mm earth clamp(copper and aluminium)2 meters,3 meters tube
Packing Size	cm	580X340X550mm
