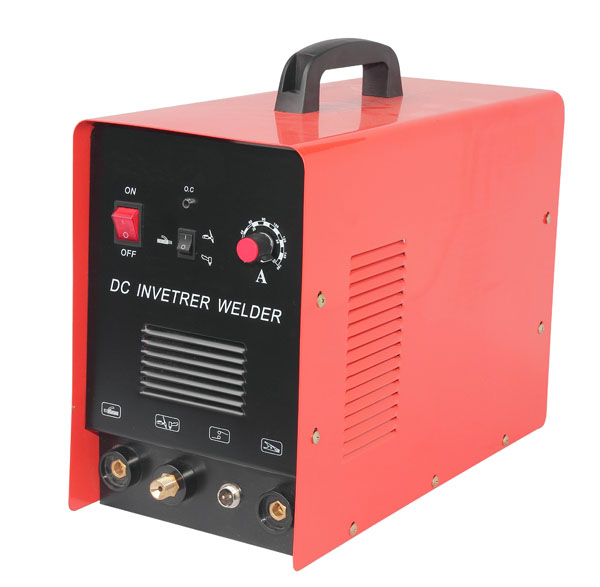

CT-416

Product Item : CT-416
CUT+TIG+MMA
Three in one welding &cutting
Product description：HF starting with post flow; CUT+TIG+MMA High cutting performance suitable for steel, stainless steel, galvanized steel, aluminum, copper, brass, etc.
Inquiry

ITEM	UNIT	CT-416
Input Power Voltage	V	230V (1Ph)
Frequency	Hz	50 / 60
Rated Input Capacity	KVA	4.9
MMA 电流	A	10-160
Real Output Current CUT	A	20-40A
TIG 电流	A	10-160A
No-Load Voltage	V	280
Rated Duty Cycle	%	60%
Power Factor	COS	0.93
Temperature protection		80 degree
Protective Grade of Housing		H
Cutting thickness （max)	mm	20mm
Clean Cutting thickness	mm	10mm
Air Pressure		2.5-5.5

Accessories(配件）		PT 31 cut torch4M，WP17 tig torch，Sets of electrode holder，sets of earth clamp，gas tube，Gas regulator。
Packing Size	cm	480X240X340mm
G.W	Kg	9
