CUT-60

Product Item : CUT-60

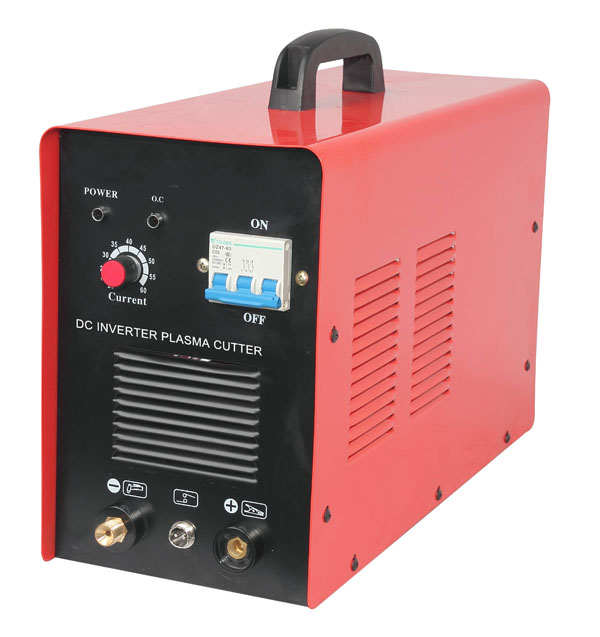

MCU modularization PLASMA CUTTING MACHINE
Product description：HF starting with post flow; High cutting performance suitable for steel, stainless steel, galvanized steel, aluminum, copper, brass, etc.
Inquiry

CUT series	CT01-40M	CT02-60M
Input Voltage(V)	230	230
Rated input current (A)	21	19.3
Output current range (A)	10-40	20-60
Rated input power (KW)	4.5	7.4
Rated output voltage (V)	96	104
Power factor(COSф)	0.85	0.85
No-load Voltage(V)	230	238
Insulation class	F	F
Protection class	IP21S	IP21S
Efficiency (%)	80	80
Max cutting thickness (mm)	10	14
Carton size (LxWxH,mm)	460x240x345	545x240x385
Accessories	3M plasma cut torch,1.2M cable with earth clamp, air regulator&pressure gauge, air outket connector, gas hose, hose clamp, manual.
