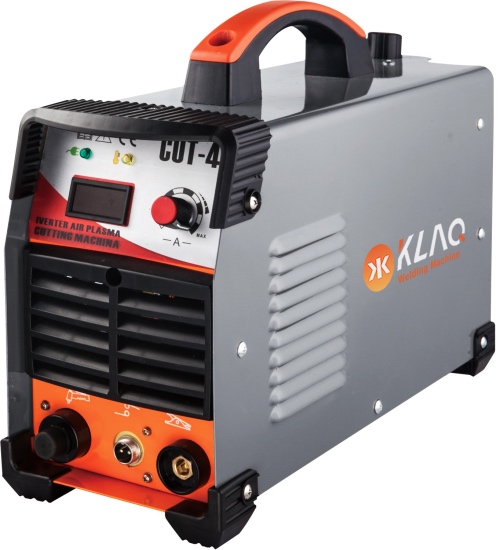

CUT-40 50 P

Product Item : CUT-40 50P
MCU modularization PLASMA CUTTING MACHINE
Product description：Mosfet TECH. High freguency cutting machine。 Max cutting thickness：25mm Clear cutting thickness：12mm
Inquiry

ITEM	UNIT	CUT50
Input Power Voltage	V	230V (1Ph)
Frequency	Hz	50 / 60
Rated Input Capacity	KVA	6.3

Real Output Current CUT	A	20-50A
No-Load Voltage	V	280
Rated Duty Cycle	%	60%
Power Factor	COS	0.93
Temperature protection		80 degree
Protective Grade of Housing		H
Cutting thickness （max)	mm	25mm
Clean Cutting thickness	mm	12mm

Air Pressure		2.5-5.5

Accessories(配件）		P31 cutting torch 4 meters，25mm welding clamp 2 meters (copper and aluminium),25mm earth clamp(copper and aluminium)2 meters,3 meters tube
Packing Size	cm	480X240X340mm
G.W	Kg	9
